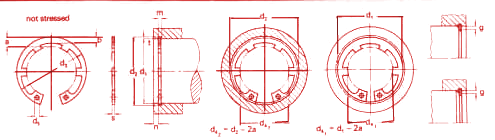

Nominal dimension RING GROOVE
| Housing dia. d1 |
s h11 |
d3 | Tolerance | a ~ |
b ~ |
d5 | Coefficient K (kg x mm) |
Weight ( kg /1,000) |
d2 | Tolerance | M min dim. |
Ax.groove area Fp (mm2) |
| 16 | 1.00 | 17.30 | +0.180 | 3.30 | 2.00 | 1.70 | 1849 | 0.720 | 16.80 | +0.110 | 1.10 | 20.60 |
| 17 | 1.00 | 18.30 | -0.100 | 3.60 | 2.50 | 1.70 | 1811 | 0.800 | 17.80 | +0.110 | 1.10 | 21.88 |
| 18 | 1.00 | 19.50 | 4.10 | 2.50 | 1.70 | 1825 | 0.900 | 19.00 | +0.150 | 1.10 | 29.03 | |
| 19 | 1.00 | 20.50 | +0.210 | 3.70 | 2.50 | 2.00 | 1725 | 0.990 | 20.00 | +0.150 | 1.10 | 30.60 |
| 20 | 1.00 | 21.50 | -0.130 | 3.80 | 2.50 | 2.00 | 1695 | 1.060 | 21.00 | +0.150 | 1.10 | 32.20 |
| 21 | 1.00 | 22.50 | 3.90 | 2.50 | 2.00 | 1729 | 1.170 | 22.00 | +0.150 | 1.10 | 33.80 | |
| 22 | 1.00 | 23.50 | 3.90 | 2.50 | 2.00 | 1760 | 1.280 | 23.00 | +0.150 | 1.10 | 35.35 | |
| 23 | 1.20 | 24.60 | 4.00 | 2.50 | 2.00 | 2885 | 1.480 | 24.10 | +0.150 | 1.30 | 40.70 | |
| 24 | 1.20 | 25.90 | +0.210 | 4.15 | 2.50 | 2.00 | 2845 | 1.600 | 25.20 | +0.210 | 1.30 | 46.30 |
| 25 | 1.20 | 26.90 | +0.210 | 4.30 | 3.00 | 2.00 | 2900 | 1.720 | 26.20 | +0.210 | 1.30 | 48.20 |
| 26 | 1.20 | 28.50 | +0.210 | 4.30 | 3.00 | 2.00 | 2785 | 2.000 | 27.20 | +0.210 | 1.30 | 50.10 |
| 27 | 1.20 | 29.10 | +0.210 | 4.40 | 3.00 | 2.00 | 2660 | 2.000 | 28.40 | +0.210 | 1.30 | 60.90 |
| 28 | 1.20 | 30.10 | +0.250 | 4.80 | 3.00 | 2.00 | 2635 | 2.100 | 29.40 | +0.210 | 1.30 | 63.10 |
| 30 | 1.20 | 32.10 | +0.250 | 4.80 | 3.00 | 2.00 | 2660 | 2.350 | 31.40 | +0.250 | 1.30 | 67.50 |
| 32 | 1.20 | 34.40 | +0.250 | 5.00 | 3.50 | 2.50 | 2660 | 2.500 | 33.70 | +0.250 | 1.30 | 87.90 |
| 33 | 1.20 | 35.50 | +0.250 | 4.90 | 3.50 | 2.50 | 2705 | 2.650 | 34.70 | +0.250 | 1.30 | 90.30 |
| 34 | 1.50 | 36.50 | +0.250 | 5.20 | 3.50 | 2.50 | 5005 | 3.800 | 35.70 | +0.250 | 1.60 | 92.60 |
| 35 | 1.50 | 37.80 | +0.250 | 5.40 | 3.50 | 2.50 | 5050 | 4.000 | 37.00 | +0.250 | 1.60 | 113.00 |
| 36 | 1.50 | 38.80 | +0.250 | 5.50 | 3.50 | 2.50 | 5020 | 4.150 | 38.00 | +0.250 | 1.60 | 116.00 |
| 38 | 1.50 | 40.80 | +0.250 | 6.00 | 4.00 | 2.50 | 5170 | 4.400 | 40.00 | +0.250 | 1.60 | 123.00 |
| 40 | 1.75 | 43.50 | +0.390 | 7.00 | 4.00 | 2.50 | 8010 | 5.300 | 42.50 | +0.250 | 1.85 | 162.00 |
| 42 | 1.75 | 45.50 | +0.390 | 7.00 | 4.00 | 2.50 | 8090 | 6.000 | 44.50 | +0.250 | 1.85 | 170.00 |
| 44 | 1.75 | 47.50 | +0.390 | 7.00 | 4.00 | 2.50 | 7860 | 6.450 | 46.50 | +0.250 | 1.85 | 177.00 |
| 45 | 1.75 | 48.40 | +0.390 | 7.00 | 4.50 | 2.50 | 7815 | 6.600 | 47.50 | +0.250 | 1.85 | 181.00 |
| 47 | 1.75 | 50.50 | +0.460 | 7.00 | 4.50 | 2.50 | 7895 | 6.900 | 49.50 | +0.250 | 1.85 | 189.00 |
| 48 | 1.75 | 51.50 | +0.460 | 7.00 | 4.50 | 2.50 | 7850 | 7.500 | 50.50 | +0.300 | 1.85 | 193.00 |
| 50 | 2.00 | 54.20 | +0.460 | 8.00 | 4.70 | 2.50 | 11140 | 8.500 | 53.00 | +0.300 | 2.15 | 243.00 |
| 52 | 2.00 | 56.20 | +0.460 | 8.00 | 4.70 | 2.50 | 10890 | 9.400 | 55.00 | +0.300 | 2.15 | 252.00 |
| 55 | 2.00 | 59.20 | +0.460 | 8.00 | 5.10 | 2.50 | 11140 | 9.750 | 58.00 | +0.300 | 2.15 | 266.00 |
| 57 | 2.00 | 61.20 | +0.460 | 8.00 | 5.10 | 2.50 | 11270 | 11.650 | 60.00 | +0.300 | 2.15 | 276.00 |
| 58 | 2.00 | 62.20 | +0.460 | 8.00 | 5.10 | 2.50 | 11220 | 12.000 | 61.00 | +0.300 | 2.15 | 280.00 |
| 60 | 2.00 | 64.20 | +0.460 | 8.00 | 5.50 | 2.50 | 11320 | 12.700 | 63.00 | +0.300 | 2.15 | 290.00 |
| 62 | 2.00 | 66.20 | +0.460 | 8.00 | 5.50 | 2.50 | 11270 | 12.750 | 65.00 | +0.300 | 2.15 | 299.00 |
| 65 | 2.50 | 69.20 | +0.460 | 9.30 | 6.00 | 3.00 | 22080 | 16.700 | 68.00 | +0.300 | 2.65 | 313.00 |
| 67 | 2.50 | 71.50 | +0.460 | 10.00 | 6.00 | 3.00 | 22250 | 18.600 | 70.00 | +0.300 | 2.65 | 323.00 |
| 68 | 2.50 | 72.50 | +0.460 | 10.00 | 6.00 | 3.00 | 22245 | 19.300 | 71.00 | +0.300 | 2.65 | 327.00 |
| 70 | 2.50 | 74.50 | +0.460 | 10.00 | 6.00 | 3.00 | 21800 | 20.200 | 73.00 | +0.300 | 2.65 | 337.00 |
| 72 | 2.50 | 76.50 | +0.460 | 10.00 | 6.80 | 3.00 | 21750 | 21.200 | 75.00 | +0.300 | 2.65 | 346.00 |
| 75 | 2.50 | 79.50 | +0.460 | 10.00 | 6.80 | 3.00 | 21580 | 22.600 | 78.00 | +0.300 | 2.65 | 360.00 |
| 80 | 2.50 | 85.50 | +0.540 | 10.00 | 6.80 | 3.00 | 21900 | 25.000 | 83.50 | +0.350 | 2.65 | 448.000 |
| 85 | 3.00 | 90.50 | +0.540 | 12.00 | 7.60 | 3.50 | 36400 | 30.100 | 88.50 | +0.350 | 3.15 | 477.00 |
| 90 | 3.00 | 95.50 | +0.540 | 12.00 | 7.60 | 3.50 | 36450 | 35.500 | 93.50 | +0.350 | 3.15 | 504.00 |
| 95 | 3.00 | 100.50 | +0.540 | 12.00 | 8.20 | 3.50 | 36550 | 40.000 | 98.50 | +0.350 | 3.15 | 532.00 |
| 100 | 3.00 | 105.50 | +0.540 | 12.00 | 8.20 | 3.50 | 35950 | 43.500 | 103.50 | +0.350 | 3.15 | 559.00 |
| 110 | 4.00 | 117.50 | +0.540 | 12.00 | 9.50 | 3.50 | 82450 | 73.000 | 114.00 | +0.540 | 4.15 | 704.00 |
| 115 | 4.00 | 122.00 | +0.630 | 12.00 | 9.50 | 3.50 | 82900 | 82.000 | 119.00 | +0.540 | 4.15 | 735.00 |
| 120 | 4.00 | 127.00 | +0.630 | 12.00 | 9.50 | 3.50 | 81800 | 87.000 | 124.00 | +0.630 | 4.15 | 767.00 |
| 125 | 4.00 | 132.00 | +0.630 | 12.00 | 9.50 | 4.00 | 80900 | 92.000 | 129.00 | +0.630 | 4.15 | 797.00 |
| 130 | 4.00 | 137.00 | +0.630 | 12.00 | 9.50 | 4.00 | 80100 | 102.000 | 134.00 | +0.640 | 4.15 | 829.00 |
| 140* | 4.00 | 148.00 | +0.630 | 14.00 | 11.50 | 4.00 | 77500 | 112.000 | 144.00 | +0.630 | 4.15 | 892.00 |
| 150 | 4.00 | 158.00 | +0.630 | 14.00 | 11.50 | 4.00 | 74800 | 123.000 | 155.00 | +0.630 | 4.15 | 1198.00 |
| 160 | 4.00 | 169.00 | +0.630 | 14.00 | 11.50 | 4.50 | 73700 | 133.000 | 165.00 | +0.630 | 4.15 | 1275.00 |
| 170 | 4.00 | 179.50 | +0.630 | 14.00 | 11.50 | 4.50 | 80000 | 145.000 | 175.00 | +0.630 | 4.15 | 1355.00 |
