Circlips For Housing Bores
|

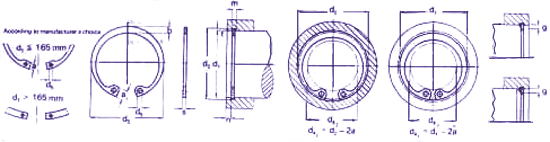

RINGS FOR HOUSING BORES DIN:472 I.S. 3075
I
|
Nominal
Dimension |
RING |
GROOVE |
Housing dia
d1 |
s
h 11 |
d3 |
Tolerance |
a |
b |
d5 |
Coefficient
K (kg x mm) |
Weight
(kg x 1,000) |
d2 |
Tolerance |
M min.
dim. |
Ax. groove
area
Fp (mm2) |
8 |
0.60 |
8.70 |
- |
2.50 |
1.20 |
1.00 |
391 |
0.105 |
8.40 |
+0.110 |
0.70 |
5.15 |
9 |
0.60 |
9.80 |
- |
2.50 |
1.40 |
1.00 |
357 |
0.135 |
9.40 |
+0.110 |
0.70 |
5.78 |
9.5 |
1.00 |
10.30 |
- |
3.00 |
1.60 |
1.20 |
2019 |
0.250 |
9.90 |
+0.110 |
1.10 |
60.9 |
10 |
1.00 |
10.80 |
+0.180 |
3.10 |
1.60 |
1.20 |
1966 |
0.260 |
10.40 |
+0.110 |
1.10 |
6.41 |
10.5 |
1.00 |
11.30 |
-0.160 |
3.10 |
1.60 |
1.20 |
1986 |
0.290 |
10.90 |
+0.110 |
1.10 |
6.72 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
11 |
1.00 |
11.80 |
- |
3.20 |
1.60 |
1.20 |
2102 |
0.310 |
11.40 |
+0.110 |
1.10 |
7.04 |
12 |
1.00 |
13.00 |
- |
3.30 |
2.00 |
1.50 |
2024 |
0.370 |
12.50 |
+0.110 |
1.10 |
9.61 |
13 |
1.00 |
14.10 |
- |
3.50 |
2.00 |
1.50 |
3037 |
0.420 |
13.60 |
+0.110 |
1.10 |
12.52 |
14 |
1.00 |
15.10 |
- |
3.60 |
2.00 |
1.70 |
1978 |
0.520 |
14.60 |
+0.110 |
1.10 |
13.47 |
15 |
1.00 |
16.20 |
- |
3.60 |
2.00 |
1.70 |
1909 |
0.560 |
15.70 |
+0.110 |
1.10 |
16.89 |
- |
|
|
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
16 |
1.00 |
17.30 |
- |
3.70 |
2.00 |
1.70 |
1849 |
0.600 |
16.80 |
+0.110 |
1.10 |
20.60 |
17 |
1.00 |
18.30 |
- |
3.80 |
2.00 |
1.70 |
1811 |
0.650 |
17.80 |
+0.110 |
1.10 |
21.88 |
18 |
1.00 |
19.50 |
- |
4.00 |
2.50 |
1.70 |
1825 |
0.740 |
19.00 |
+0.150 |
1.10 |
29.03 |
19 |
1.00 |
20.50 |
+0.210 |
4.00 |
2.50 |
2.00 |
1725 |
0.830 |
20.00 |
+0.150 |
1.10 |
30.60 |
20 |
1.00 |
21.50 |
-0.130 |
4.00 |
2.50 |
2.00 |
1695 |
0.900 |
21.00 |
+0.150 |
1.10 |
32.20 |
- |
|
|
- |
|
|
|
- |
- |
- |
- |
- |
- |
21 |
1.00 |
22.50 |
- |
4.10 |
2.50 |
2.00 |
1729 |
1.000 |
22.00 |
+0.150 |
1.10 |
33.80 |
22 |
1.00 |
23.50 |
- |
4.10 |
2.50 |
2.00 |
1760 |
1.100 |
23.00 |
+0.150 |
1.10 |
35.35 |
23 |
1.20 |
24.60 |
- |
4.20 |
2.50 |
2.00 |
2885 |
1.340 |
24.10 |
+0.150 |
1.30 |
40.70 |
24 |
1.20 |
25.90 |
+ 0.210 |
4.30 |
2.50 |
2.00 |
2845 |
1.420 |
25.20 |
+0.210 |
1.30 |
46.30 |
25 |
1.20 |
26.90 |
+ 0.210 |
4.40 |
3.00 |
2.00 |
2900 |
1.500 |
26.20 |
+0.210 |
1.30 |
48.20 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
26 |
1.20 |
27.90 |
+ 0.210 |
4.60 |
3.00 |
2.00 |
2785 |
1.600 |
27.20 |
+0.210 |
1.30 |
50.10 |
27 |
1.20 |
29.10 |
+ 0.210 |
4.60 |
3.00 |
2.00 |
2660 |
1.750 |
28.40 |
+0.210 |
1.30 |
60.90 |
28 |
1.20 |
30.10 |
+ 0.250 |
4.70 |
3.00 |
2.00 |
2635 |
1.800 |
29.40 |
+0.210 |
1.30 |
63.10 |
29 |
1.20 |
31.10 |
+ 0.250 |
4.70 |
3.00 |
2.00 |
2685 |
1.880 |
30.40 |
+0.250 |
1.30 |
65.30 |
30 |
1.20 |
32.10 |
+ 0.250 |
4.70 |
3.00 |
2.00 |
2660 |
2.060 |
31.40 |
+0.250 |
1.30 |
67.50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
31 |
1.20 |
33.40 |
+ 0.250 |
5.20 |
3.50 |
2.50 |
2680 |
2.100 |
32.70 |
+0.250 |
1.30 |
84.80 |
32 |
1.20 |
34.40 |
+ 0.250 |
5.20 |
3.50 |
2.50 |
2660 |
2.210 |
33.70 |
+0.250 |
1.30 |
87.90 |
33 |
1.20 |
35.50 |
+ 0.250 |
5.20 |
3.50 |
2.50 |
2705 |
2.400 |
34.70 |
+0.250 |
1.30 |
90.30 |
34 |
1.50 |
36.50 |
+ 0.250 |
5.20 |
3.50 |
2.50 |
5005 |
3.200 |
35.70 |
+0.250 |
1.60 |
92.60 |
35 |
1.50 |
37.80 |
+ 0.250 |
5.20 |
3.50 |
2.50 |
5050 |
3.540 |
37.00 |
+0.250 |
1.60 |
113.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
36 |
1.50 |
38.80 |
+ 0.250 |
5.20 |
3.50 |
2.50 |
5020 |
3.700 |
38.00 |
+0.250 |
1.60 |
116.00 |
37 |
1.50 |
39.80 |
+ 0.250 |
5.20 |
3.50 |
2.50 |
5100 |
3.740 |
39.00 |
+0.250 |
1.60 |
119.00 |
38 |
1.50 |
40.80 |
+ 0.250 |
5.30 |
4.00 |
2.50 |
5170 |
3.900 |
40.00 |
+0.250 |
1.60 |
123.00 |
39 |
1.50 |
42.00 |
+ 0.390 |
5.50 |
4.00 |
2.50 |
5245 |
4.000 |
41.00 |
+0.250 |
1.60 |
126.00 |
40 |
1.75 |
43.50 |
+ 0.390 |
5.70 |
4.00 |
2.50 |
8010 |
4.700 |
42.50 |
+0.250 |
1.85 |
162.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
41 |
1.75 |
44.50 |
+ 0.390 |
5.70 |
4.00 |
2.50 |
8120 |
5.100 |
43.50 |
+0.250 |
1.85 |
166.00 |
42 |
1.75 |
45.50 |
+ 0.390 |
5.80 |
4.00 |
2.50 |
8090 |
5.400 |
44.50 |
+0.250 |
1.85 |
170.00 |
43 |
1.75 |
46.50 |
+ 0.390 |
5.80 |
4.50 |
2.50 |
8050 |
5.600 |
45.50 |
+0.250 |
1.85 |
173.00 |
44 |
1.75 |
47.50 |
+ 0.390 |
5.90 |
4.50 |
2.50 |
7860 |
5.800 |
46.50 |
+0.250 |
1.85 |
177.00 |
45 |
1.75 |
48.50 |
+ 0.390 |
5.90 |
4.50 |
2.50 |
7815 |
6.000 |
47.50 |
+0.250 |
1.85 |
181.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
46 |
1.75 |
49.50 |
+ 0.390 |
6.00 |
4.50 |
2.50 |
7785 |
6.050 |
48.50 |
+0.250 |
1.85 |
185.00 |
47 |
1.75 |
50.50 |
+ 0.460 |
6.10 |
4.50 |
2.50 |
7895 |
6.100 |
49.50 |
+0.250 |
1.85 |
189.00 |
48 |
1.75 |
51.50 |
+ 0.460 |
6.20 |
4.50 |
2.50 |
7850 |
6.700 |
50.50 |
+0.300 |
1.85 |
193.00 |
50 |
2.00 |
54.20 |
+ 0.460 |
6.50 |
4.50 |
2.50 |
11140 |
7.300 |
53.00 |
+0.300 |
2.15 |
243.00 |
51 |
2.00 |
55.20 |
+ 0.460 |
6.50 |
5.10 |
2.50 |
10910 |
7.750 |
54.00 |
+0.300 |
2.15 |
247.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
52 |
2.00 |
56.20 |
+ 0.460 |
6.50 |
5.10 |
2.50 |
10890 |
8.200 |
55.00 |
+0.300 |
2.15 |
252.00 |
53 |
2.00 |
57.20 |
+ 0.460 |
6.50 |
5.10 |
2.50 |
11040 |
8.220 |
56.00 |
+0.300 |
3.15 |
257.00 |
54 |
2.00 |
58.20 |
+ 0.460 |
6.50 |
5.10 |
2.50 |
11010 |
8.250 |
57.00 |
+0.300 |
2.15 |
262.00 |
55 |
2.00 |
59.20 |
+ 0.440 |
6.50 |
5.10 |
2.50 |
11140 |
8.300 |
58.00 |
+0.300 |
2.15 |
266.00 |
56 |
2.00 |
60.20 |
+ 0.460 |
6.50 |
5.10 |
2.50 |
11115 |
8.800 |
59.00 |
+0.300 |
2.15 |
271.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
57 |
2.00 |
61.20 |
+ 0.460 |
6.80 |
5.10 |
2.50 |
11270 |
9.400 |
60.00 |
+0.300 |
2.15 |
276.00 |
58 |
2.00 |
62.20 |
+ 0.460 |
6.80 |
5.10 |
2.50 |
11220 |
10.500 |
61.00 |
+0.300 |
2.15 |
280.00 |
60 |
2.00 |
64.20 |
+ 0.460 |
6.80 |
5.50 |
2.50 |
11320 |
11.100 |
63.00 |
+0.300 |
2.15 |
290.00 |
62 |
2.00 |
66.20 |
+ 0.460 |
6.90 |
5.50 |
2.50 |
11270 |
11.200 |
65.00 |
+0.300 |
2.15 |
299.00 |
63 |
2.00 |
67.20 |
+ 0.460 |
6.90 |
5.50 |
2.50 |
11220 |
12.400 |
66.00 |
+0.300 |
2.15 |
304.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
65 |
2.50 |
69.20 |
+ 0.460 |
7.00 |
5.50 |
3.00 |
22080 |
14.300 |
68.00 |
+0.300 |
2.65 |
313.00 |
67 |
2.50 |
71.50 |
+ 0.460 |
7.00 |
6.00 |
3.00 |
22250 |
15.000 |
70.00 |
+0.300 |
2.65 |
323.00 |
68 |
2.50 |
72.50 |
+ 0.460 |
7.40 |
6.00 |
3.00 |
22245 |
16.000 |
71.00 |
+0.300 |
2.65 |
327.0 |
|
|
