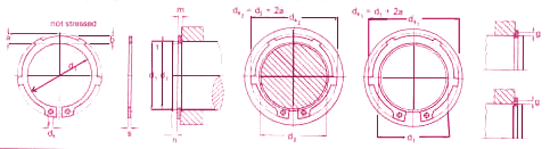

K. RINGS FOR SHAFTS     DIN 983

K. RINGS FOR SHAFTS

Nominal dimension                               RING                                                                    GROOVE
Shaft dia d1

h 11
d3
Tolerance
a
b
d5
Coefficient
 K (kg x mm)
Weight
(kg x 1,000)
d2
Tolerance
M mm
dim.
Ax.groove
area
Fp (mm2)
17
1.00
15.70
-
3.55
2.20
1.70
2160
0.930
16.20
-0.110
1.10
20.84
18
1.20
16.50
+0.100
3.65
2.70
1.70
3710
1.240
17.00
-0.110
1.30
27.50
19
1.20
17.50
-0.180
3.65
2.70
2.00
3640
1.350
18.00
-0.110
1.30
29.05
20
1.20
18.50
-
3.75
2.70
2.00
3630
1.450
19.00
-0.150
1.30
30.60
22
1.20
20.50
+0.130
3.95
2.70
2.00
3540
1.770
21.00
-0.150
1.30
33.80
-
-
-
-0.210
-
-
-
-
-
-
-
-
-
23
1.20
21.50
-
4.00
2.70
2.00
3470
1.840
22.00
-0.150
1.30
35.40
24
1.20
22.20
+0.210
4.10
2.70
2.00
3340
1.980
22.90
-0.210
1.30
40.50
25
1.20
23.20
+0.210
4.20
3.10
2.00
3340
2.120
23.90
-0.210
1.30
42.30
26
1.20
24.20
+0.210
4.30
3.10
2.00
3290
2.180
24.90
-0.210
1.30
44.00
28
1.50
25.90
+0.210
4.45
3.10
2.00
6500
3.150
26.60
-0.210
1.60
60.00
-
-
-
-
-
-
-
-
-
-
-
-
-
29
1.50
26.90
+0.210
4.60
3.70
2.00
6400
3.350
27.60
-0.210
1.60
62.20
30
1.50
27.90
+0.210
4.65
3.70
2.00
6420
3.650
28.60
-0.210
1.60
64.40
32
1.50
29.60
+0.210
4.90
3.70
2.50
6180
4.000
30.30
-0.250
1.60
83.10
34
1.50
31.50
+0.210
5.00
3.70
2.50
6130
4.150
32.30
-0.250
1.60
88.30
35
1.50
32.20
+0.250
5.10
3.70
2.50
6010
4.380
33.00
-0.250
1.60
106.80
-
-
-
-
-
-
-
-
-
-
-
-
-
38
1.75
35.20
+0.250
5.40
4.70
2.50
9500
6.500
36.00
-0.250
1.85
116.10
40
1.75
36.50
+0.390
7.00
4.70
2.50
9695
7.000
37.50
-0.250
1.85
152.00
42
1.75
38.50
+0.390
7.00
4.70
2.50
9370
7.500
39.50
-0.250
1.85
160.00
45
1.75
41.50
+0.390
7.00
4.70
2.50
9100
8.500
42.50
-0.250
1.85
17200
47
1.75
43.50
+0.390
7.00
4.70
2.50
9070
8.700
44.50
-0.250
1.85
180.00
-
-
-
-
-
-
-
-
-
-
-
-
-
48
1.75
44.50
+0.390
7.00
4.70
2.50
9000
8.900
45.50
-0.250
1.85
184.00
50
2.00
45.80
+0.390
8.00
5.00
2.50
13330
11.550
47.00
-0.250
2.15
228.00
55
2.00
50.80
+0.460
8.00
5.50
2.50
13010
12.990
52.00
-0.300
2.15
252.00
57
2.00
52.80
+0.460
8.00
5.50
2.50
12880
14.000
54.00
-0.300
2.15
262.00
58
2.00
53.80
+0.460
8.00
5.50
2.50
12920
14.300
55.00
-0.300
2.15
266.00
-
-
-
-
-
-
-
-
-
-
-
-
-
60
2.00
55.80
+0.460
8.00
5.50
2.50
12635
14.800
57.00
-0.300
2.15
276.00
62
2.00
57.80
+0.460
8.00
5.50
2.50
12620
15.900
59.00
-0.300
2.15
285.00
65
2.50
60.80
+0.460
10.00
6.40
3.00
24500
21.700
62.00
-0.300
2.65
299.00
67
2.50
62.50
+0.460
10.00
6.40
3.00
24500
22.600
64.00
-0.300
2.65
308.00
68
2.50
63.50
+0.460
10.00
6.40
3.00
24400
23.500
65.00
-0.300
2.65
313.00
-
-
-
-
-
-
-
-
-
-
-
-
-
70
2.50
65.50
+0.460
10.00
6.40
3.00
24100
25.100
67.00
-0.300
2.65
323.00
75
2.50
70.50
+0.460
10.00
7.20
3.00
23400
28.200
72.00
-0.300
2.65
346.00
80
2.50
74.50
+0.460
10.00
7.20
3.00
23630
30.750
76.50
-0.300
2.65
430.00
85
3.00
79.50
+0.460
10.00
8.00
3.50
40500
39.500
81.50
-0.540
3.15
457.00
90
3.00
84.50
+0.540
10.00
8.00
3.50
40100
47.700
86.50
-0.540
3.15
485.00
-
-
-
-
-
-
-
-
-
-
-
-
-
95
3.00
89.50
+0.540
10.00
8.80
3.50
40000
53.000
91.50
-0.540
3.15
513.00
100
3.00
94.50
+0.540
10.00
8.80
3.50
39700
56.600
96.50
-0.540
3.15
540.00
110
4.00
103.00
+0.540
12.00
9.60
3.50
91400
84.600
106.00
-0.540
4.15
678.00
120
4.00
113.00
+0.540
14.00
10.60
3.50
88200
89.700
116.00
-0.540
4.15
741.00
140
4.00
133.00
 +0.630
14.00
10.60
4.00
84000
115.000
136.00
-0.630
4.15
867.00
